Simple start-up with configuration of the plants using default settings from the expert database
Connection of 8 rack field modules
Control of 16 compressors (depending on compressor type, field module type and operating mode)
Compressor control according to COP
Differentiation of unused sensors and faulty sensors
Control circuits per rack:
Suction pressure control
Condenser control
Control of electronic expansion valves
Control processes:
Standard multiple contact switch with base load change
Compressor control with frequency converter
Frigotakt+ and Frigotakt-G4
Can be locked to prevent unwanted parameter adjustment (SAC – Security Access Control)

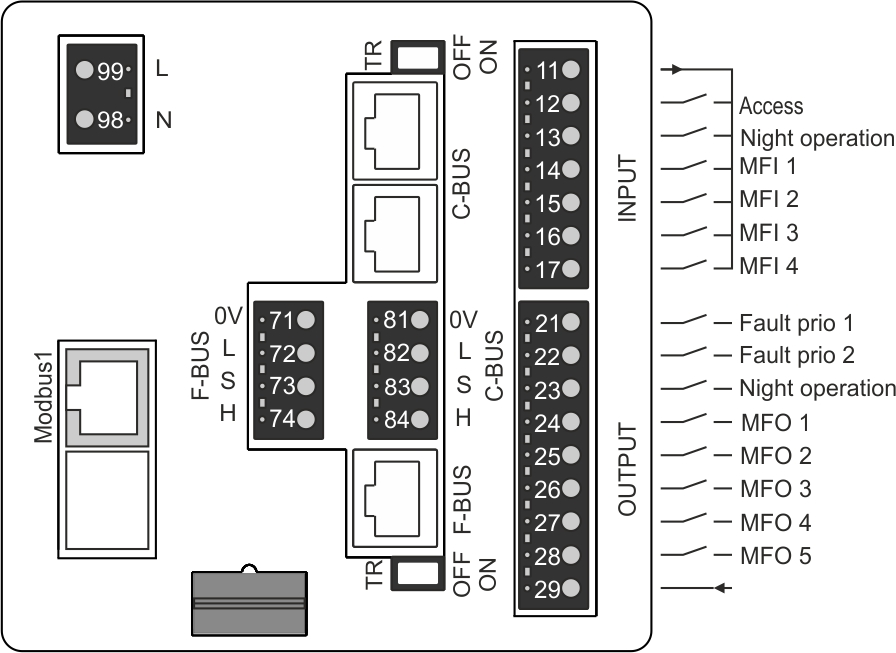

Integrated relay outputs
Multilingual menu navigation (DE/EN/FR/NL)
Connection to the Wurm system via Wurm CAN communication bus (C-BUS) and FRIGODATA XP
High level of safety with galvanically isolated Wurm CAN buses
